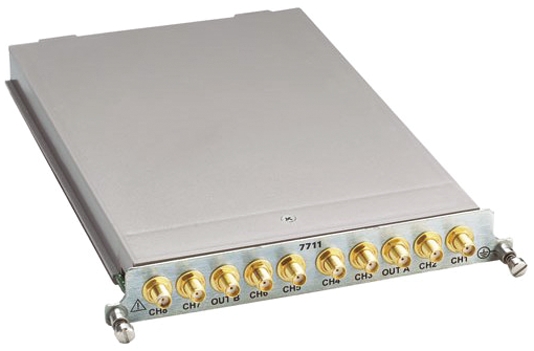

Keithley 7711 Module, Accessory Type Switching Module

The Keithley 7711 Switching Module is a dedicated accessory designed to complement bench power supplies or source modules, enabling controlled switching of RF signals up to 2 GHz in a system with tightly defined impedance. This module is ideal for users who need reliable channel switching in measurement or test setups, especially where high‑frequency or fast switching is required. It attaches to compatible bench‑source equipment, integrating into existing setups to simplify routing, reduce external cabling, and improve signal integrity.

What Makes the Keithley 7711 Switching Module Standout?

The 7711 switching module stands out due to its high performance at RF frequencies (2 GHz) combined with a 50‑ohm matched impedance, ensuring minimal signal distortion or reflection. Manufactured by Keithley, a leader in precision instrumentation, this switch module adds both switching capability and quality RF compatibility. Its build is designed for seamless integration into existing bench‑source setups, improving reliability and simplifying signal paths.

Functional Highlights of the Keithley 7711 Module:

• RF switching capability up to 2 GHz
• Matched 50‑ohm impedance for signal path integrity
• Designed as an accessory (switching module) for bench power supply/source systems
• Manufactured by Keithley (high‑quality precision instrumentation).

For more information please check the datasheets.
