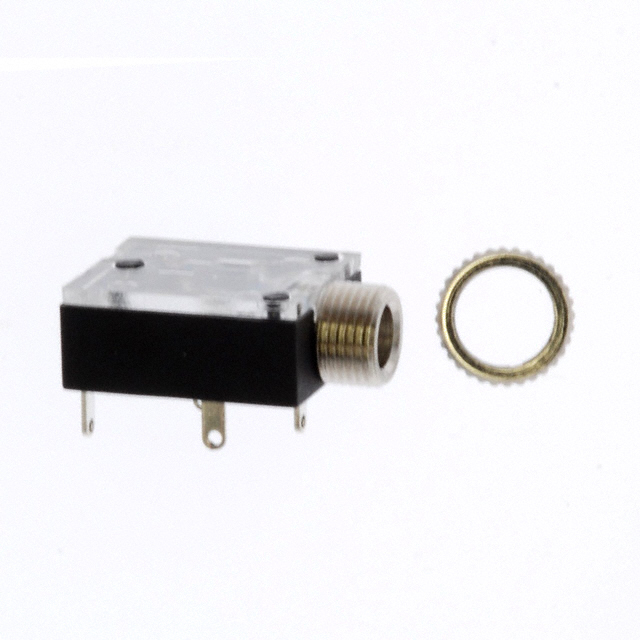

CUI Devices SJ1-3515
Product Information
Mounting Type:
Through Hole
Gender:
Female
Body Orientation:
Horizontal
Type:
Jack Connector
Size:
3.5 mm
Manufacturer Standard Lead Time:
14 Weeks
Detailed Description:
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
Actual Diameter:
0.142" (3.60mm)
Voltage - Rated:
12VDC
Thread Size:
M6
Operating Temperature:
-25°C ~ 85°C
Panel Hole Size:
0.236" (5.99mm)
Internal Switch(s):
Two Switches
Shielding:
Unshielded
Number of Positions/Contacts:
3 Conductors, 5 Contacts
Includes:
2 pcs - 1 Connector, 1 Nut
Signal Lines:
Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter:
3.50mm (0.141", 1/8", Mini Plug) - Headphone
Manufacturer:
CUI Devices
Contact Material - Plating:
Tin
Gender:
Female
Connector Type:
Phone Jack
Body Material:
Brass
Termination:
Solder Eyelet(s)
Current Rating (Amps):
1A
Housing Material:
Polybutylene Terephthalate (PBT)
Body Color:
Silver, Black
Features:
Mounting Hardware, Thread Lock
Mounting Type:
Panel Mount, Through Hole, Right Angle
Mating Length/Depth:
0.551" (14.00mm)
Series:
SJ1
Packaging:
Tray
Customer Reference:
Contact Material:
Brass
Checking for live stock
FAQs
Yes. You can also search SJ1-3515 on website for other similar products.
We accept all major payment methods for all products including ET18630210. Please check your shopping cart at the time of order.
You can order CUI Devices brand products with SJ1-3515 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Barrel - Audio Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of CUI Devices SJ1-3515. You can also check on our website or by contacting our customer support team for further order details on CUI Devices SJ1-3515.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18630210 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "CUI Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18630210.
Yes. We ship SJ1-3515 Internationally to many countries around the world.
This is manufactured by CUI Devices. The manufacturer part number is SJ1-3515. The product is available in through hole configuration. In addition, female is the available "Gender" of the product. It has horizontal body orientation. It comes in jack connector configuration. The product is available in 3.5 mm size. It has typical 14 weeks of manufacturer standard lead time. It features 3.50mm (0.141", 1/8", mini plug) - headphone phone jack stereo (3 conductor, trs) connector solder eyelet(s). Its actual diameter is 0.142" (3.60mm). It also exhibits voltage rating of 12vdc. It has a typical thread size of m6. The product has -25°c ~ 85°c operating temperature range. The product features a panel hole size of 0.236" (5.99mm). Internal switch options: two switches. Furthermore, the product is shielded with unshielded. The product consists of 3 conductors, 5 contacts positions or contacts. The product is also supplied with 2 pcs - 1 connector, 1 nut. Features stereo (3 conductor, trs) signal lines. The product has 3.50mm (0.141", 1/8", mini plug) - headphone industrial recognised mating diameter. The cui devices's product offers user-desired applications. While the contact is tin. phone jack Connector type offer robust functionality. The product's body is nicely designed from brass materials. The product features solder eyelet(s) termination style. Additionally, the product's output is 1a. The product also features robust polybutylene terephthalate (pbt) housing material. The body has a classic silver, black colour. The splendid features of the product include mounting hardware, thread lock. The product is available in panel mount, through hole, right angle configuration. The product has 0.551" (14.00mm) mating length or depth. The product sj1, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. The product is made from sturdy brass materials.
