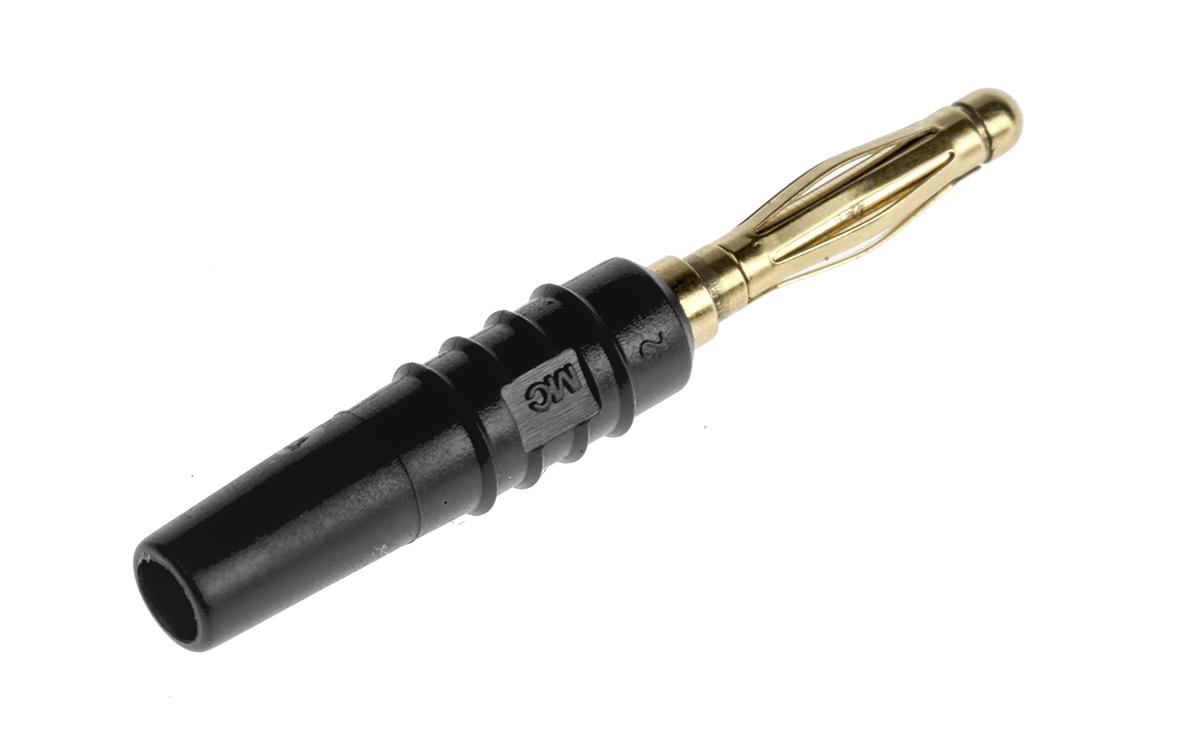

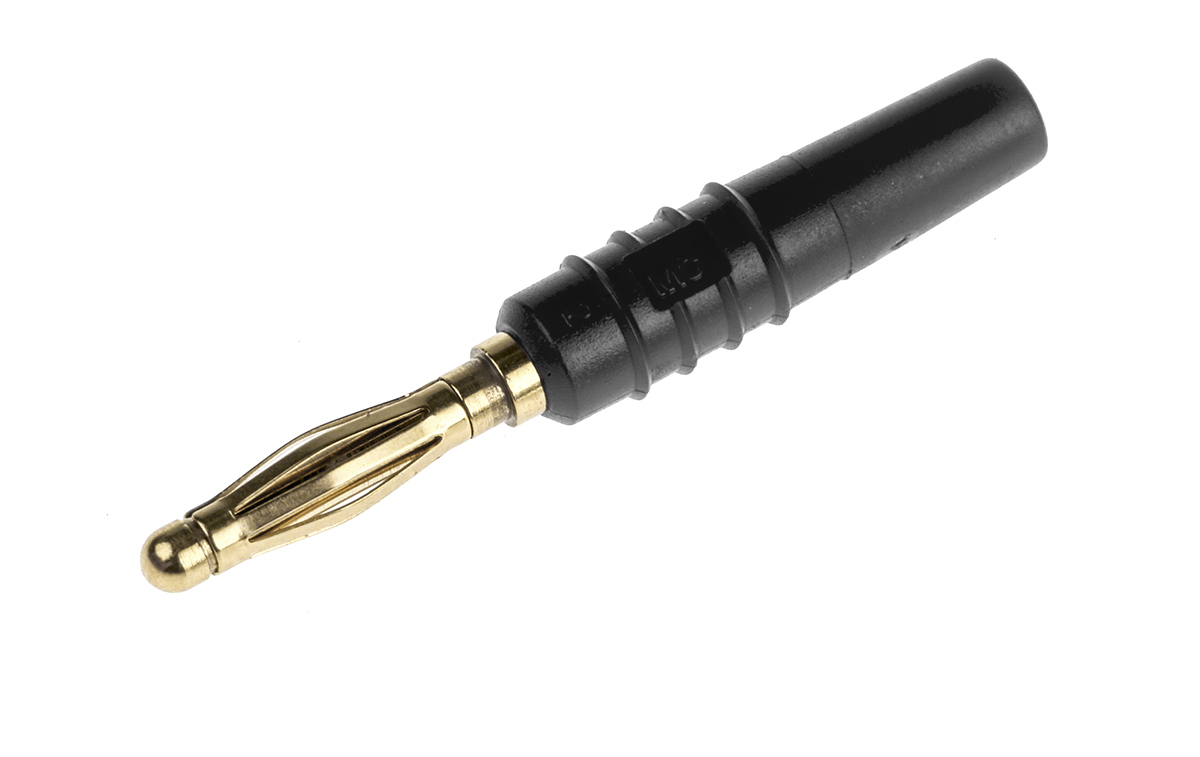

Multi-Contact SLS205-L Series Multilam Inline 2 mm Plugs Multi-Contact SLS205-L series multilam inline 2 mm plug connectors are for the self assembly of test leads to your own specification and test lead application. These 2mm diameter gold plated inline plugs have a spring loaded miltilam contact with solder bucket connection and the press fit rigid insulator body allows for a maximum cable diameter of 2.1 mm, suitable for many applications that call for a 2 mm diameter multilam plug connector. The test plug insulator is assembled over an associated cable prior to soldering into the solder bucket, it is then a press fit over the 2 mm miltilam plug tang to finalise and complete the SLS205-L inline plug connector assembly. 2mm plug with spring loaded Multilam™ Gold plated Solder connection for lead Accepts 0.5mm 2 lead up to maximum diameter of 2.1mm Rated up to 30Vac / 60Vdc at 10A Assembly instructions included In-line lead connection Compatible with LB-I2R 2mm socket Note Suitable for use with the LB-I2R range of panel mount sockets see 763-2926 and range. 2mm Multi-Contact Test Lead Plug and Socket Connectors Multi-Contact 2 mm rigid and multilam plug connectors and socket connectors range is suitable for many applications that call for a self assembled 2 mm diameter plug test lead or a panel mount receptacle socket connector. The test plug insulator is assembled over an associated cable prior to soldering into the solder bucket, it is then a press fit over the 2 mm plug tang to complete.
For more information please check the datasheets.
