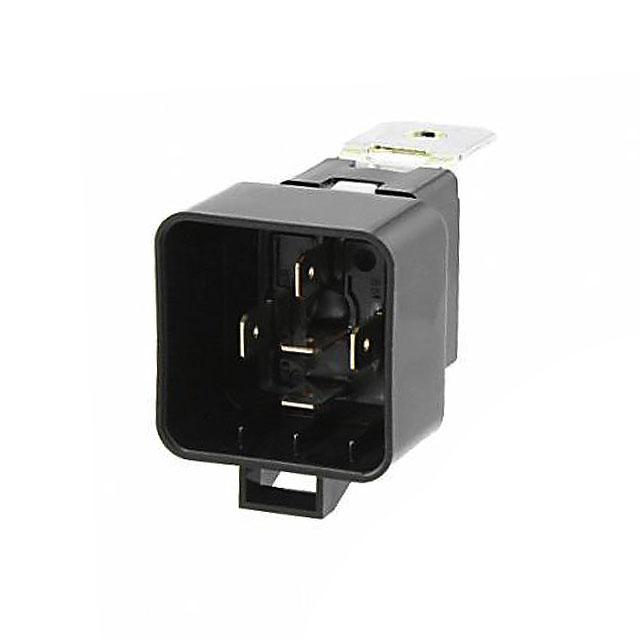

Panasonic Electric Works CB1-WM-12V

CB1-WM-12V Panasonic Electric Works
Panasonic Electric Works

Product Information

HTSUS:
8536.41.0050
RoHS Status:
ROHS3 Compliant
Coil Voltage:
12VDC
Termination Style:
Quick Connect - 0.250" (6.3mm)
Operating Temperature:
-40°C ~ 85°C
Coil Current:
117 mA
Coil Type:
Non Latching
Switching Voltage:
14VDC - Nom
REACH Status:
REACH Unaffected
Must Operate Voltage:
7 VDC
Manufacturer:
Panasonic Electric Works
Contact Form:
SPDT (1 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
15 ms
Must Release Voltage:
1.2 VDC
standardLeadTime:
24 Weeks
Contact Rating (Current):
40 A
Features:
Sealed - Fully
Mounting Type:
Chassis Mount
Series:
CB
Release Time:
15 ms
Packaging:
Bulk
Base Product Number:
CB1-WM
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electric Works. The manufacturer part number is CB1-WM-12V. It is assigned with possible HTSUS value of 8536.41.0050. The product is rohs3 compliant. The coil voltage of the product is 12vdc. Moreover, it has quick connect - 0.250" (6.3mm) terminal style. The product has -40°c ~ 85°c operating temperature range. It has a coil current of 117 ma. The coil is a non latching type. The product's switching voltage is 14vdc - nom. In addition, it is reach unaffected. On the other hand, 7 vdc is the given crucial/must operating voltage. The panasonic electric works's product offers user-desired applications. It also has a spdt (1 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 15 ms. While the must release voltage is a 1.2 vdc. It has a long 24 weeks standard lead time. It has a contact current rating of 40 a. The splendid features of the product include sealed - fully. The product is available in chassis mount configuration. The product cb, is a highly preferred choice for users. While 15 ms is its release time. In addition, bulk is the available packaging type of the product. Moreover, it corresponds to cb1-wm, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
General Appl Guidelines(Other Related Documents)
pdf icon
How to Read Date Codes(Other Related Documents)
