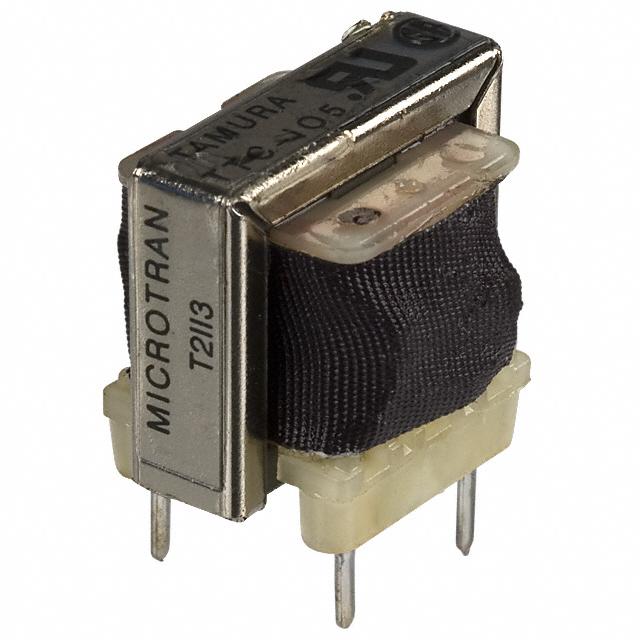

Tamura TTC-105

TTC-105 Tamura
Tamura

Product Information

Frequency Range:
660Hz ~ 3.5kHz
HTSUS:
8504.31.2000
RoHS Status:
RoHS Compliant
Termination Style:
PC Pin
Power Level:
-45dB ~ 10dB
Approval Agency:
CSA-C22.2 No. 66-M1988, UL1459
DC Resistance (DCR) - Primary:
71Ohm
Height - Seated (Max):
0.748" (19.00mm)
Operating Temperature:
-
Manufacturer:
Tamura
DC Resistance (DCR) - Secondary:
117Ohm
Impedance - Secondary (Ohms):
600
Size / Dimension:
0.839" L x 0.630" W (21.30mm x 16.00mm)
Turns Ratio - Primary:Secondary:
1:1
standardLeadTime:
26 Weeks
Voltage - Isolation:
1500VRMS @ 1 Minute
Impedance - Primary (Ohms):
600
Moisture Sensitivity Level (MSL):
Not Applicable
Transformer Type:
Data/Voice Coupling
Insertion Loss:
3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz
Mounting Type:
Through Hole
Series:
TTC
Frequency Response:
-1dB ~ 0.7dB
Packaging:
Bulk
Return Loss:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Tamura. The manufacturer part number is TTC-105. The frequency range includes 660hz ~ 3.5khz. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs compliant. Moreover, it has pc pin terminal style. It has -45db ~ 10db of power level. It is approved by csa-c22.2 no. 66-m1988, ul1459. A product has a primary 71ohm DC resistance. It has the maximum seated height of 0.748" (19.00mm). The tamura's product offers user-desired applications. While it provides 117ohm of secondary DC resistance. The secondary impedance in ohms is 600. The product's diameters include 0.839" l x 0.630" w (21.30mm x 16.00mm). The typical primary and secondary turn ratio is 1:1. It has a long 26 weeks standard lead time. 1500vrms @ 1 minute of isolation voltage. The product has a primary 600 impedance. Its typical moisture sensitivity level is not applicable. It is a data/voice coupling transformer. Allows 3db max @ 660hz ~ 800hz, 2.5db max @ 800hz @ 3.5khz of insertion loss. The product is available in through hole configuration. The product ttc, is a highly preferred choice for users. The product offers -1db ~ 0.7db of frequency response. In addition, bulk is the available packaging type of the product. The product is designated with the ear99 code number.
