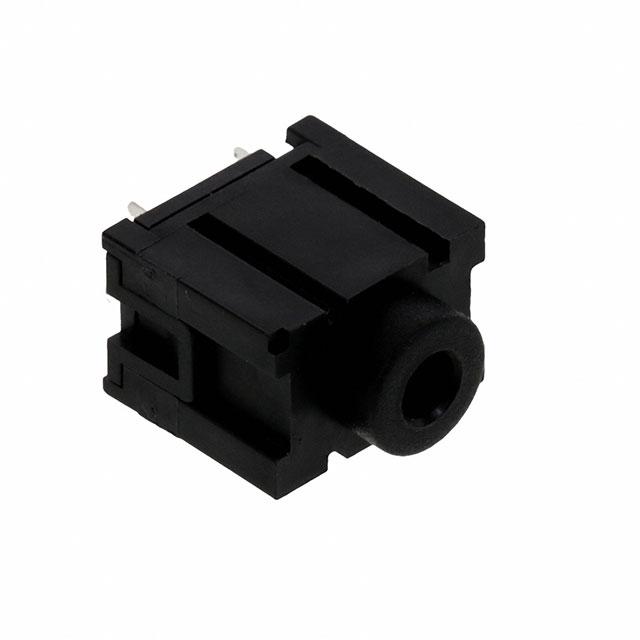

Kycon, Inc. STX-3680-5NB
Product Information
Actual Diameter:
0.142" (3.60mm)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Thread Size:
-
Operating Temperature:
-25°C ~ 85°C
Panel Hole Size:
-
Industry Recognized Mating Diameter:
3.50mm (0.141", 1/8", Mini Plug) - Headphone
Internal Switch(s):
Two Switches
Shielding:
Unshielded
Voltage - Rated:
16VDC
Cable Opening:
-
Insulation Color:
-
REACH Status:
REACH Unaffected
Includes:
-
edacadModel:
STX-3680-5NB Models
Signal Lines:
Stereo (3 Conductor, TRS)
Number of Positions/Contacts:
3 Conductors, 5 Contacts
edacadModelUrl:
/en/models/9975997
Package:
Tray
Gender:
Female
Connector Type:
Phone Jack
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Body Material:
-
Termination:
Solder
standardLeadTime:
22 Weeks
Current Rating (Amps):
300 mA
Housing Material:
Thermoplastic
Body Color:
Black
Features:
-
Mounting Type:
Through Hole
Mating Length/Depth:
-
Series:
STX-3680
Contact Material - Plating:
Silver
Contact Material:
Copper Alloy
Base Product Number:
STX
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search STX-3680-5NB on website for other similar products.
We accept all major payment methods for all products including ET18120614. Please check your shopping cart at the time of order.
You can order Kycon, Inc. brand products with STX-3680-5NB directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Audio Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Kycon, Inc. STX-3680-5NB. You can also check on our website or by contacting our customer support team for further order details on Kycon, Inc. STX-3680-5NB.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18120614 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Kycon, Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET18120614.
Yes. We ship STX-3680-5NB Internationally to many countries around the world.
This is manufactured by Kycon, Inc.. The manufacturer part number is STX-3680-5NB. Its actual diameter is 0.142" (3.60mm). It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 85°c operating temperature range. The product has 3.50mm (0.141", 1/8", mini plug) - headphone industrial recognised mating diameter. Internal switch options: two switches. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 16vdc. In addition, it is reach unaffected. Features stereo (3 conductor, trs) signal lines. The product consists of 3 conductors, 5 contacts positions or contacts. It is shipped in tray package . In addition, female is the available "Gender" of the product. phone jack Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 22 weeks standard lead time. Additionally, the product's output is 300 ma. The product also features robust thermoplastic housing material. The body has a classic black colour. The product is available in through hole configuration. The product stx-3680, is a highly preferred choice for users. While the contact is silver. The product is made from sturdy copper alloy materials. Moreover, it corresponds to stx, a base product number of the product. The product is designated with the ear99 code number.
