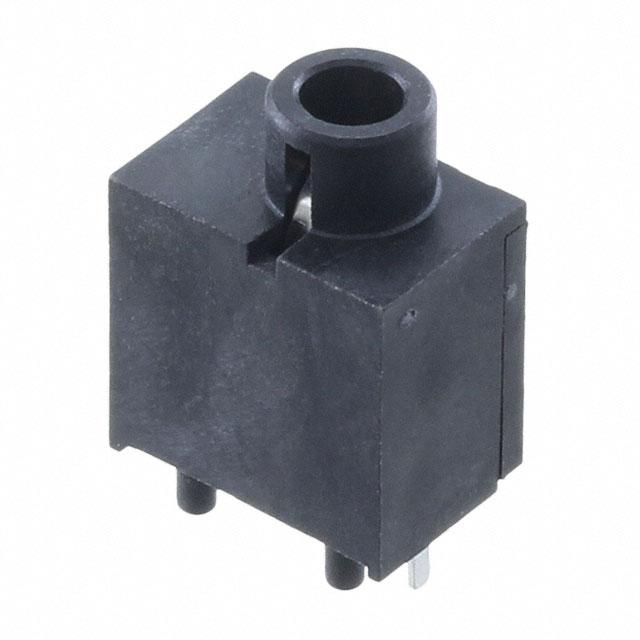

Molex 0472570001
Product Information
Actual Diameter:
0.140" (3.56mm)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Thread Size:
-
Operating Temperature:
-40°C ~ 85°C
Panel Hole Size:
-
Industry Recognized Mating Diameter:
3.50mm (0.141", 1/8", Mini Plug) - Headphone
Internal Switch(s):
Single Switch
Shielding:
Unshielded
Voltage - Rated:
12VDC
Cable Opening:
-
Insulation Color:
-
REACH Status:
REACH Unaffected
Includes:
-
edacadModel:
0472570001 Models
Signal Lines:
Stereo (3 Conductor, TRS)
Number of Positions/Contacts:
3 Conductors, 4 Contacts
edacadModelUrl:
/en/models/3262245
Package:
Tube
Gender:
Female
Connector Type:
Phone Jack
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Body Material:
-
Termination:
Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
1 A
Housing Material:
Polyamide (PA), Nylon, Glass Filled
Body Color:
Black
Features:
Board Guide
Mounting Type:
Through Hole
Mating Length/Depth:
-
Series:
47257
Contact Material - Plating:
Gold
Contact Material:
Brass, Phosphor Bronze
Base Product Number:
047257
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 0472570001 on website for other similar products.
We accept all major payment methods for all products including ET17502690. Please check your shopping cart at the time of order.
You can order Molex brand products with 0472570001 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Audio Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 0472570001. You can also check on our website or by contacting our customer support team for further order details on Molex 0472570001.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17502690 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17502690.
Yes. We ship 0472570001 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 0472570001. Its actual diameter is 0.140" (3.56mm). It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. The product has 3.50mm (0.141", 1/8", mini plug) - headphone industrial recognised mating diameter. Internal switch options: single switch. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 12vdc. In addition, it is reach unaffected. Features stereo (3 conductor, trs) signal lines. The product consists of 3 conductors, 4 contacts positions or contacts. It is shipped in tube package . In addition, female is the available "Gender" of the product. phone jack Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 13 weeks standard lead time. Additionally, the product's output is 1 a. The product also features robust polyamide (pa), nylon, glass filled housing material. The body has a classic black colour. The splendid features of the product include board guide. The product is available in through hole configuration. The product 47257, is a highly preferred choice for users. While the contact is gold. The product is made from sturdy brass, phosphor bronze materials. Moreover, it corresponds to 047257, a base product number of the product. The product is designated with the ear99 code number.
