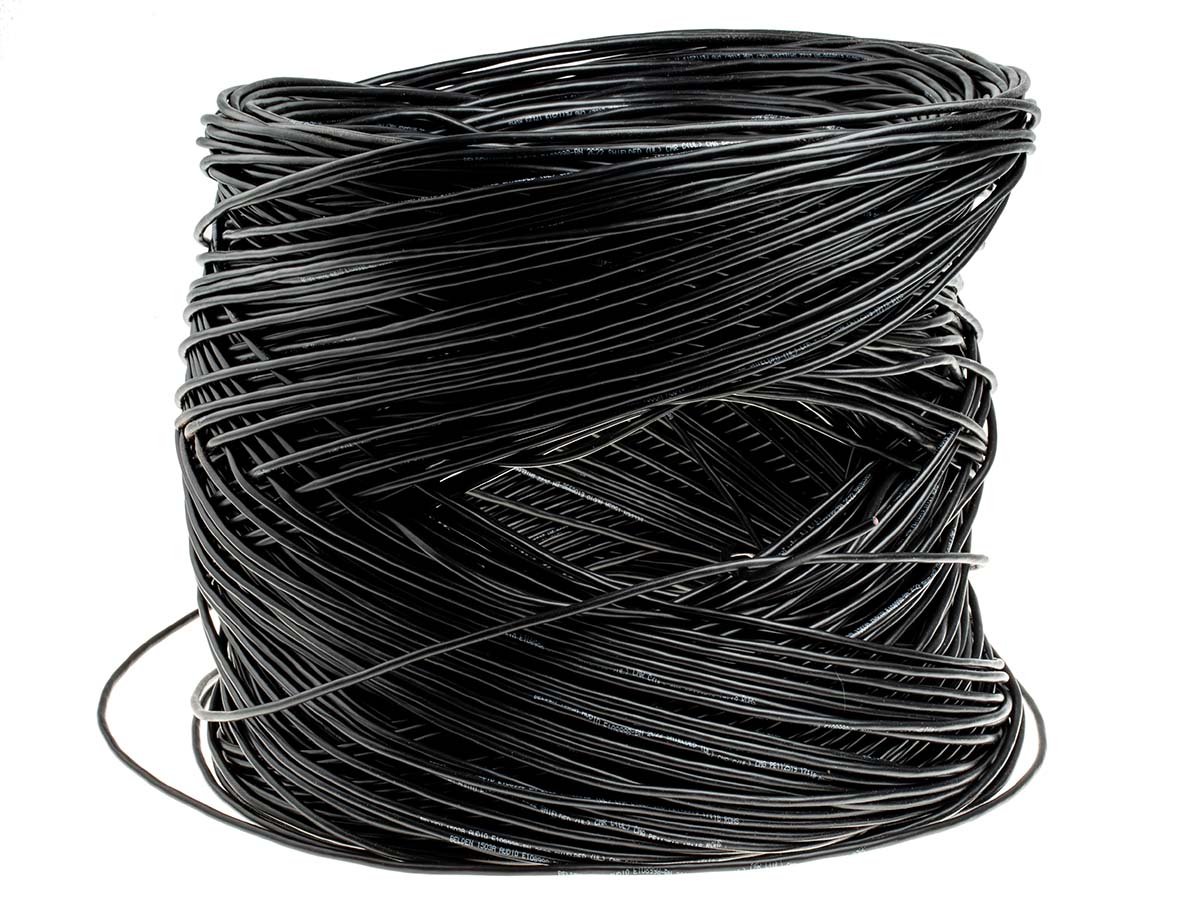

Belden 304m 2 Core Screened Black Instrument Cable, 300 V, 3.61mm od , 0.33 mm² CSA
Product Information
American Wire Gauge:
22 AWG
Current Rating:
2.9 A
Conductor Resistance:
48.228348 Ω/km
Screened/Unscreened:
Screened
Number of Cores:
2
CPR Certification:
Eca
Outer Diameter:
3.61mm
Number of Strands:
7
Standards Met:
Euroclass Eca
Cable Shape:
Multicore
Core Strands:
7/30
Conductor Strand Type:
Stranded
Maximum Operating Temperature:
+90°C
Drain Wire:
Yes
Voltage Rating:
300 V
Audio Cable Type:
Line level Low Voltage signal Cable
Length:
304m
Characteristic Impedance:
38 Ω
Sheath Material:
PVC
Screen Type:
Aluminium/PET Foil
Conductor Material:
Copper
Series:
1503A
Capacitance Core To Core:
173.84pF/m
Sheath Colour:
Black
Capacitance Core To Screen:
318.16pF/m
Cross Sectional Area:
0.33 mm²
Minimum Operating Temperature:
-30°C
Insulation Material:
PVC
Checking for live stock
FAQs
Yes. You can also search 1503A 010U1000 on website for other similar products.
We accept all major payment methods for all products including ET16937926. Please check your shopping cart at the time of order.
You can order Belden brand products with 1503A 010U1000 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Audio Cable category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Belden 304m 2 Core Screened Black Instrument Cable, 300 V, 3.61mm od , 0.33 mm² CSA. You can also check on our website or by contacting our customer support team for further order details on Belden 304m 2 Core Screened Black Instrument Cable, 300 V, 3.61mm od , 0.33 mm² CSA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16937926 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Belden" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16937926.
Yes. We ship 1503A 010U1000 Internationally to many countries around the world.
This is 304m 2 Core Screened Black Instrument Cable 300 V 3.61mm od 0.33 mm² CSA manufactured by Belden. The manufacturer part number is 1503A 010U1000. Features 22 awg - American Wire Gauge. The product has a current rating of 2.9 a. The conductor has 48.228348 ω/km resistance. Screen Options - screened. The product consists of 2 cores. Its outer diameter is 3.61mm. Additionally, it contains 7 strands. The product complies with all safety standards, such as euroclass eca. Moreover, this cable has a multicore shape. The core strands are 7/30. It has a stranded type conductor strand . It has a maximum operating temperature of +90°c. It has a drain wire included yes . Moreover, the product has a nominal 300 v voltage rating. Moreover, it has a/an line level low voltage signal cable type audio cable . Its accurate length is 304m. The typical characteristic impedance includes 38 ω. The sheath is constructed from durable and adorable pvc material. It has a/an aluminium/pet foil type screen . The conductor is made from copper material. The product 1503a, is a highly preferred choice for users. It has a standard 173.84pf/m capacitance core to core . The sheath has an adorable black colour. It has about 318.16pf/m capacitance core to screen . The product has 0.33 mm² cross section area. Whereas, the minimum operating temperature of the product is -30°c. It has a robust pvc insulation material.
