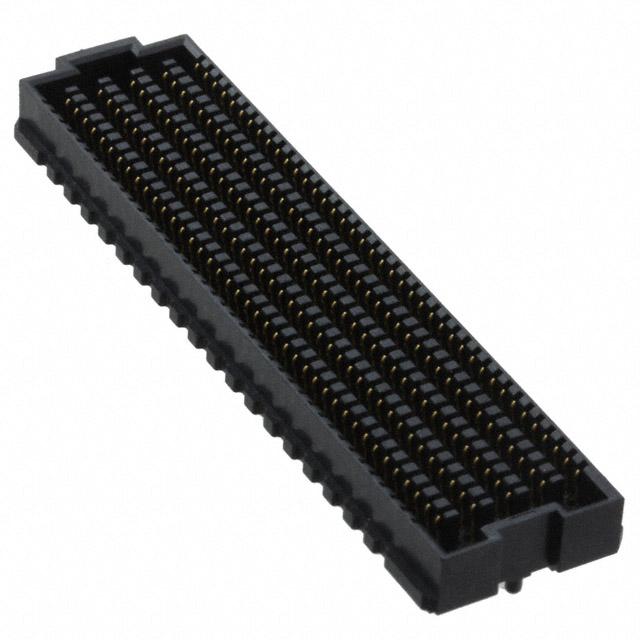

Molex 0459714115

0459714115 Molex
0459714115
Molex

Product Information

HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Height Above Board:
0.199" (5.05mm)
Contact Finish Thickness:
30.0µin (0.76µm)
Number of Positions:
400
title:
0459714115
REACH Status:
REACH Unaffected
edacadModel:
0459714115 Models
Number of Rows:
10
edacadModelUrl:
/en/models/2038513
Manufacturer:
Molex
Connector Type:
High Density Array, Female
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
15 Weeks
Features:
Board Guide
Mounting Type:
Surface Mount
Series:
SEARAY 45971
Packaging:
Tape & Reel (TR)
Mated Stacking Heights:
7mm, 7.5mm, 8mm, 8.5mm, 9.5mm, 10mm, 12mm
Pitch:
0.050" (1.27mm)
Base Product Number:
045971
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0459714115. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is 0.199" (5.05mm) high above board. It has 30.0µin (0.76µm) of contact finishing thickness. The product carries possible position value of 400. In addition, it is reach unaffected. It comes in 10 of rows. The molex's product offers user-desired applications. high density array, female Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has a long 15 weeks standard lead time. The splendid features of the product include board guide. The product is available in surface mount configuration. The product searay 45971, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The mated stacking heights of a bespoke product includes 7mm, 7.5mm, 8mm, 8.5mm, 9.5mm, 10mm, 12mm. Moreover, the product is 0.050" (1.27mm). Moreover, it corresponds to 045971, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
45971-4115 RoHS Cert of Compliance(Environmental Information)
pdf icon
Mult Devs Supplier 03/May/2023(PCN Assembly/Origin)
pdf icon
Mult Devs Drawing Correction 21/Jul/2022(PCN Design/Specification)
pdf icon
SEARAY Product Spec(Datasheets)
pdf icon
Intermateability Prod Spec(Datasheets)
pdf icon
459714115 Datasheet(Datasheets)
pdf icon
SEARAY Test Summary(Other Related Documents)
pdf icon
SEARAY IPC-9701A Test Summary(Other Related Documents)
pdf icon
45971-4115.pdf(3D Drawings)
