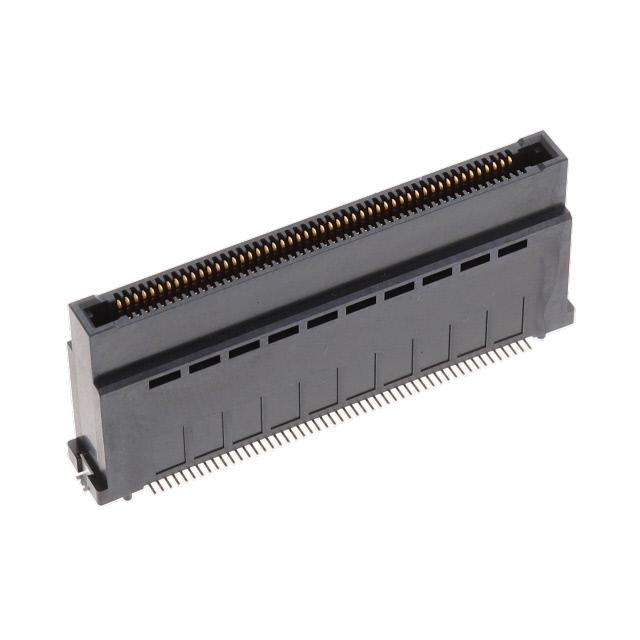

JAE Electronics AX01R100VANBR200

AX01R100VANBR200 JAE Electronics
JAE Electronics

Product Information

HTSUS:
8536.69.4040
Height Above Board:
0.655" (16.64mm)
Contact Finish Thickness:
4.00µin (0.100µm)
Number of Positions:
100
edacadModel:
AX01R100VANBR200 Models
Number of Rows:
2
edacadModelUrl:
/en/models/11687634
Package:
Tape & Reel (TR)
Connector Type:
Plug, Outer Shroud Contacts
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
15 Weeks
Features:
Board Guide
Mounting Type:
Surface Mount
Series:
AX01
Mated Stacking Heights:
-
Pitch:
0.025" (0.64mm)
Base Product Number:
AX01R100
ECCN:
EAR99
Checking for live stock

This is manufactured by JAE Electronics. The manufacturer part number is AX01R100VANBR200. It is assigned with possible HTSUS value of 8536.69.4040. It is 0.655" (16.64mm) high above board. It has 4.00µin (0.100µm) of contact finishing thickness. The product carries possible position value of 100. It comes in 2 of rows. It is shipped in tape & reel (tr) package . plug, outer shroud contacts Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has a long 15 weeks standard lead time. The splendid features of the product include board guide. The product is available in surface mount configuration. The product ax01, is a highly preferred choice for users. Moreover, the product is 0.025" (0.64mm). Moreover, it corresponds to ax01r100, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
AX01R Design chg 01/JUL/2020(PCN Design/Specification)
