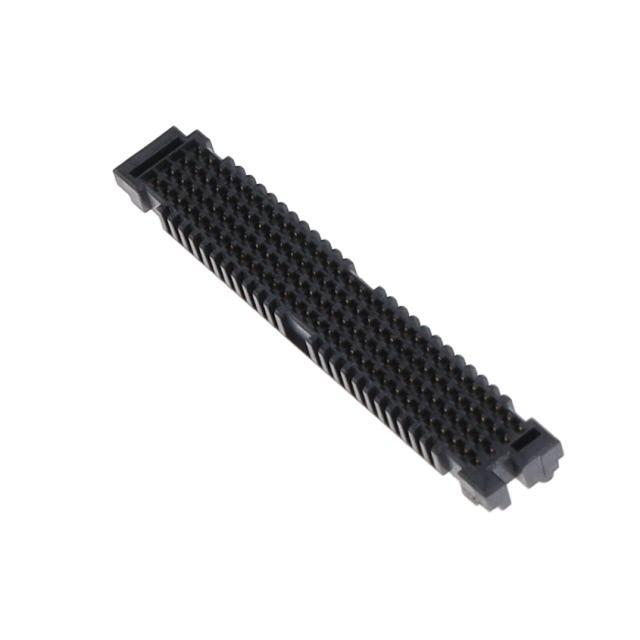

Samtec Inc. LPAF-30-03.0-L-04-1-K-TR

LPAF-30-03-0-L-04-1-K-TR Samtec Inc. LPAF-30-03.0-L-04-1-K-TR
Samtec Inc.

Product Information

HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Height Above Board:
0.110" (2.79mm)
Contact Finish Thickness:
10.0µin (0.25µm)
Number of Positions:
120
title:
LPAF-30-03.0-L-04-1-K-TR
edacadModel:
LPAF-30-03.0-L-04-1-K-TR Models
Number of Rows:
4
edacadModelUrl:
/en/models/10218271
Manufacturer:
Samtec Inc.
Connector Type:
Array, Female Sockets
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
6 Weeks
Features:
Board Guide, Pick and Place
Mounting Type:
Surface Mount
Series:
LP Arrary™
Packaging:
Tape & Reel (TR)
Mated Stacking Heights:
4mm, 4.5mm
Pitch:
0.050" (1.27mm)
Base Product Number:
LPAF-30
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is LPAF-30-03.0-L-04-1-K-TR. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is 0.110" (2.79mm) high above board. It has 10.0µin (0.25µm) of contact finishing thickness. The product carries possible position value of 120. It comes in 4 of rows. The samtec inc.'s product offers user-desired applications. array, female sockets Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has a long 6 weeks standard lead time. The splendid features of the product include board guide, pick and place. The product is available in surface mount configuration. The product lp arrary™, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The mated stacking heights of a bespoke product includes 4mm, 4.5mm. Moreover, the product is 0.050" (1.27mm). Moreover, it corresponds to lpaf-30, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
LPAF Datasheet(Datasheets)
pdf icon
.050" LP Array™ High-Speed High-Density Low Profile Open-Pin-Field Array, Socket(Datasheets)
pdf icon
LPAF Series Other Related Documents 03(Other Related Documents)
pdf icon
.050" LP Array™ High-Speed High-Density Low Profile Open-Pin-Field Array, Socket(Other Related Documents)
pdf icon
Design chg 24/MAR/2022(PCN Design/Specification)
