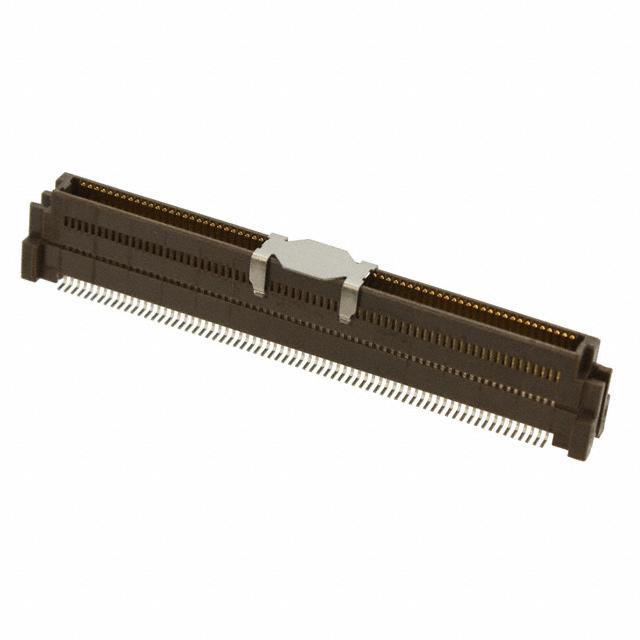

Molex 0536271474

0536271474 Molex
0536271474
Molex

Product Information

HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Height Above Board:
0.354" (9.00mm)
Contact Finish Thickness:
10.0µin (0.25µm)
Number of Positions:
140
REACH Status:
REACH Unaffected
edacadModel:
0536271474 Models
Number of Rows:
2
edacadModelUrl:
/en/models/3197047
Package:
Tape & Reel (TR)
Connector Type:
Plug, Outer Shroud Contacts
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
9 Weeks
Features:
Board Guide, Solder Retention
Mounting Type:
Surface Mount
Series:
SlimStack 53627
Mated Stacking Heights:
10mm, 16mm
Pitch:
0.025" (0.64mm)
Base Product Number:
053627
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0536271474. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is 0.354" (9.00mm) high above board. It has 10.0µin (0.25µm) of contact finishing thickness. The product carries possible position value of 140. In addition, it is reach unaffected. It comes in 2 of rows. It is shipped in tape & reel (tr) package . plug, outer shroud contacts Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has a long 9 weeks standard lead time. The splendid features of the product include board guide, solder retention. The product is available in surface mount configuration. The product slimstack 53627, is a highly preferred choice for users. The mated stacking heights of a bespoke product includes 10mm, 16mm. Moreover, the product is 0.025" (0.64mm). Moreover, it corresponds to 053627, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
536271474 RoHS Cert of Compliance(Environmental Information)
pdf icon
Prod Spec(Datasheets)
pdf icon
53627 Series Drawing(Product Drawings)
