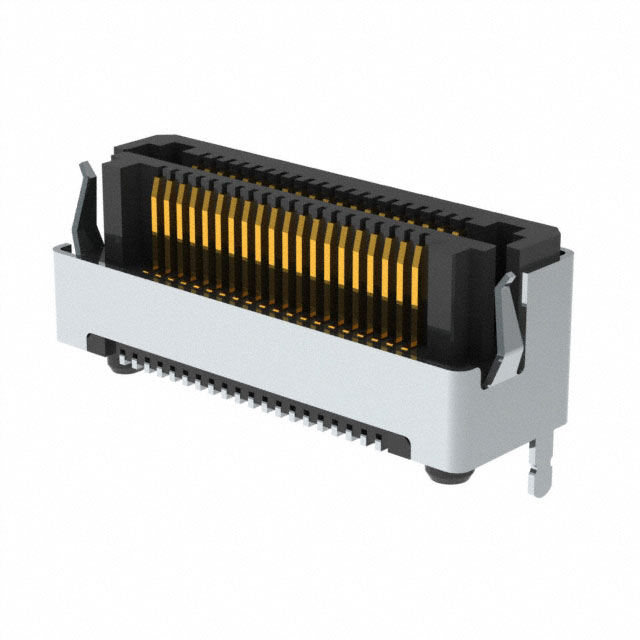

Samtec Inc. LSHM-120-04.0-L-DV-A-S-K-TR

Enrgtech Part No: ET13384115
|
Manufacturer Part No:
LSHM-120-04.0-L-DV-A-S-K-TR
|
Manufacturer: Samtec Inc.

LSHM-120-04-0-L-DV-A-S-K-TR Samtec Inc. LSHM-120-04.0-L-DV-A-S-K-TR

Product Information

HTSUS:

8536.69.4040

RoHS Status:

ROHS3 Compliant

Height Above Board:

0.215" (5.46mm)

Contact Finish Thickness:

10.0µin (0.25µm)

Number of Positions:

title:

LSHM-120-04.0-L-DV-A-S-K-TR

REACH Status:

REACH Unaffected

edacadModel:

LSHM-120-04.0-L-DV-A-S-K-TR Models

Number of Rows:

edacadModelUrl:

/en/models/6561597

Manufacturer:

Samtec Inc.

Connector Type:

Self Mating, Non-Gendered, Hermaphroditic

Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is LSHM-120-04.0-L-DV-A-S-K-TR. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is 0.215" (5.46mm) high above board. It has 10.0µin (0.25µm) of contact finishing thickness. The product carries possible position value of 40. In addition, it is reach unaffected. It comes in 2 of rows. The samtec inc.'s product offers user-desired applications. self mating, non-gendered, hermaphroditic Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has a long 6 weeks standard lead time. The splendid features of the product include board guide, pick and place, shielded. The product is available in surface mount configuration. The product razor beam™ lshm, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The mated stacking heights of a bespoke product includes 6.5mm, 7mm, 8mm, 10mm. Moreover, the product is 0.020" (0.50mm). Moreover, it corresponds to lshm-120, a base product number of the product. The product is designated with the ear99 code number.

LSHM Series Datasheet 02(HTML Datasheet)

740238 Test Report(Reliability Documents)

740209 Test Report 02(Reliability Documents)

740237 Test Reports(Reliability Documents)

982561 Test Report(Reliability Documents)

Material color chg 05/AUG/2022(PCN Design/Specification)

LSHM Datasheet(Datasheets)

0.50 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip, Optional Shielding(Datasheets)

LSHM Series Datasheet 03(Datasheets)

LSHM Series Other Related Documents 03(Other Related Documents)

0.50 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip, Optional Shielding(Other Related Documents)

LSHM-1xx-xx.x-xx-DV-A-X-X-TR Drawing(Product Drawings)
