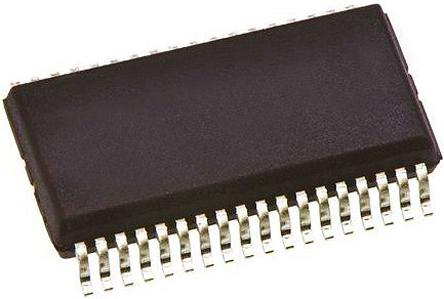

Linear Technology LTC2442CG#PBF, 24-bit Serial ADC 4-Channel Differential, Single Ended Input, 36-Pin SSOP

LTC2442CG-PBF Linear Technology LTC2442CG#PBF, 24-bit Serial ADC 4-Channel Differential, Single Ended Input, 36-Pin SSOP
LTC2442CG#PBF
Analog Devices

Product Information

Number of ADCs:
4
Integral Nonlinearity Error:
10ppm
Dimensions:
13.1 x 5.6 x 2mm
Mounting Type:
Surface Mount
Power Supply Type:
Single
Minimum Operating Temperature:
0 °C
Digital Interface Type:
Serial (SPI)
Input Signal Type:
Differential, Single Ended
Typical Single Supply Voltage:
4.5 to 5.5 V
Package Type:
SSOP
Architecture:
Delta Sigma
Input Type:
Voltage
Maximum Operating Temperature:
70 °C
Resolution:
24-bit
Pin Count:
36
RoHs Compliant
Checking for live stock

This is Linear Technology 24-bit Serial ADC 4-Channel Differential Single Ended Input 36-Pin SSOP manufactured by Analog Devices. The manufacturer part number is LTC2442CG#PBF. It contains 4 ADCs . Its integral nonlinearity error is 10ppm . The given dimensions of the product include 13.1 x 5.6 x 2mm. The product is available in surface mount configuration. It is a type of single power supply. Whereas, the minimum operating temperature of the product is 0 °c. Additionally, the product has a/an serial (spi) type digital interface . The input signal is a kind of differential, single ended signal. It has a typical single supply voltage of 4.5 to 5.5 v. The package is a sort of ssop. The product has been designed as delta sigma. It carries voltage input type. It has a maximum operating temperature of 70 °c. Features 24-bit resolution. It contains 36 pins.
