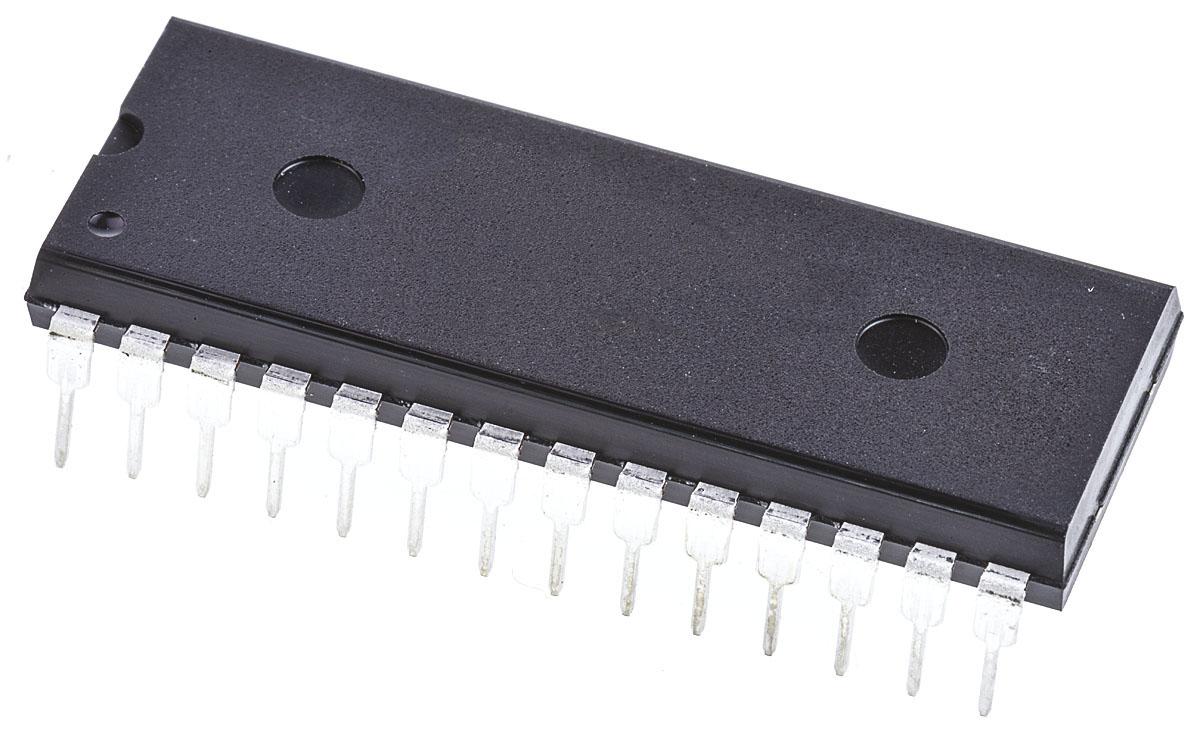

Analog Devices AD7581JNZ, 8-bit Parallel ADC, 28-Pin PDIP

AD7581JNZ Analog Devices , 8-bit Parallel ADC, 28-Pin PDIP
AD7581JNZ
Analog Devices

Product Information

Number of ADCs:
8
Integral Nonlinearity Error:
±1.875LSB
Dimensions:
39.75 x 14.73 x 4.95mm
Mounting Type:
Through Hole
Maximum Operating Temperature:
70 °C
Minimum Operating Temperature:
0 °C
Digital Interface Type:
Parallel
Input Signal Type:
Single Ended
Typical Single Supply Voltage:
5 V
Package Type:
PDIP
Architecture:
SAR
Input Type:
Voltage
Sampling Rate:
1.88ksps
Resolution:
8-bit
Pin Count:
28
RoHs Compliant
Checking for live stock

This is 8-bit Parallel ADC 28-Pin PDIP manufactured by Analog Devices. The manufacturer part number is AD7581JNZ. It contains 8 ADCs . Its integral nonlinearity error is ±1.875lsb . The given dimensions of the product include 39.75 x 14.73 x 4.95mm. The product is available in through hole configuration. It has a maximum operating temperature of 70 °c. Whereas, the minimum operating temperature of the product is 0 °c. Additionally, the product has a/an parallel type digital interface . The input signal is a kind of single ended signal. It has a typical single supply voltage of 5 v. The package is a sort of pdip. The product has been designed as sar. It carries voltage input type. It has about 1.88ksps sampling rate . Features 8-bit resolution. It contains 28 pins.

pdf icon
AD7581JNZ Data Sheet(Technical Reference)
pdf icon
Designing Power Supplies for High Speed ADC(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AD7581JNZ on website for other similar products.
We accept all major payment methods for all products including ET16826428. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD7581JNZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Analogue to Digital Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices AD7581JNZ, 8-bit Parallel ADC, 28-Pin PDIP. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD7581JNZ, 8-bit Parallel ADC, 28-Pin PDIP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16826428 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16826428.
Yes. We ship AD7581JNZ Internationally to many countries around the world.
