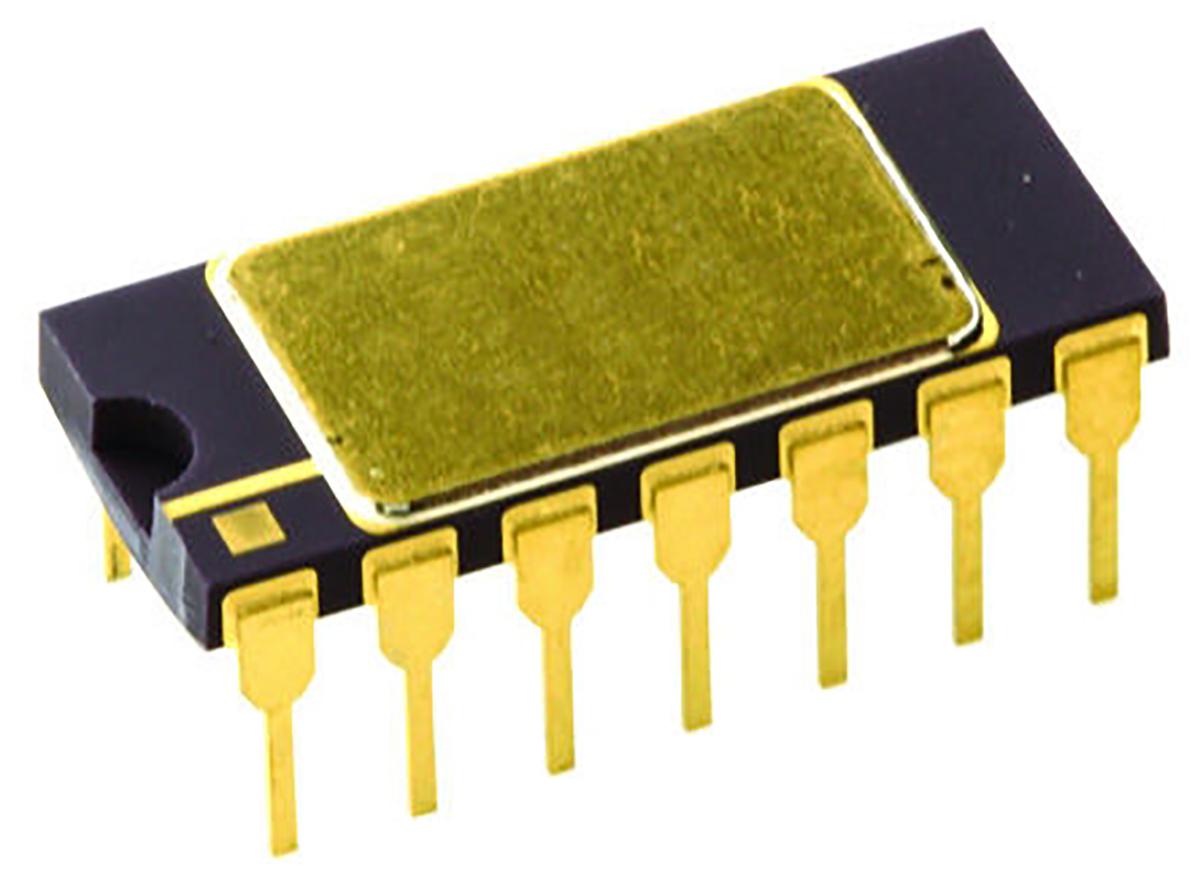

Analogue multiplier,AD534KD DIL14 1MHz

AD534KDZ Analogue multiplier,AD534KD DIL14 1MHz
Analog Devices

Product Information

Number of Quadrants:
4
Dimensions:
17.78 x 7.37 x 2.41mm
Mounting Type:
Through Hole
Maximum Dual Supply Voltage:
±18V
Minimum Operating Temperature:
0 °C
Output Type:
Single Ended
Height:
2.41mm
Width:
7.37mm
Length:
17.78mm
Package Type:
SBDIP
Maximum Operating Frequency:
1 MHz
Minimum Dual Supply Voltage:
±8V
Maximum Operating Temperature:
+70 °C
Pin Count:
14
Number of Elements per Chip:
1
RoHs Compliant
Checking for live stock

This is Analogue multiplierAD534KD DIL14 1MHz manufactured by Analog Devices. The manufacturer part number is AD534KDZ. It has 4 number of quadrants included . The given dimensions of the product include 17.78 x 7.37 x 2.41mm. The product is available in through hole configuration. With ±18v of maximum dual supply voltage . Whereas, the minimum operating temperature of the product is 0 °c. Furthermore, it has asingle ended output. In addition, the height is 2.41mm. Furthermore, the product is 7.37mm wide. Its accurate length is 17.78mm. The package is a sort of sbdip. It carries 1 mhz of maximum operating frequency. With ±8v as a minimum dual supply voltage . It has a maximum operating temperature of +70 °c. It contains 14 pins. It consists of 1 elements per chip.

pdf icon
Datasheet(Technical Reference)
pdf icon
Analog Devices Multipliers Tutorial(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AD534KDZ on website for other similar products.
We accept all major payment methods for all products including ET14102124. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD534KDZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Analogue Multipliers and Dividers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analogue multiplier,AD534KD DIL14 1MHz. You can also check on our website or by contacting our customer support team for further order details on Analogue multiplier,AD534KD DIL14 1MHz.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14102124 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14102124.
Yes. We ship AD534KDZ Internationally to many countries around the world.
