HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 125°C
Channel-to-Channel Matching (ΔRon):
1.5Ohm (Typ)
Package / Case:
16-TSSOP (0.173", 4.40mm Width)
Switch Time (Ton, Toff) (Max):
90ns (Typ), 70ns (Typ)
Current - Leakage (IS(off)) (Max):
100nA
Voltage - Supply, Dual (V±):
-
-3db Bandwidth:
180MHz
REACH Status:
REACH Unaffected
Multiplexer/Demultiplexer Circuit:
2:1
Package:
Tape & Reel (TR)
Channel Capacitance (CS(off), CD(off)):
12.7pF
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Voltage - Supply, Single (V+):
2.5V ~ 5.5V
standardLeadTime:
12 Weeks
Switch Circuit:
SPDT
Number of Circuits:
3
Mounting Type:
Surface Mount
Series:
-
Crosstalk:
-110dB @ 1MHz
On-State Resistance (Max):
65Ohm
Supplier Device Package:
16-TSSOP
Charge Injection:
6pC
ECCN:
EAR99

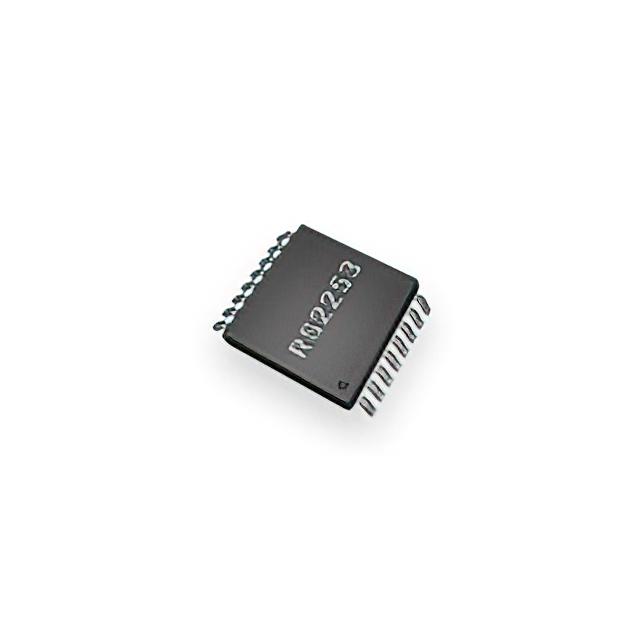

This is manufactured by Runic Technology. The manufacturer part number is RS2253XTSS16. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 125°c operating temperature range. Features 1.5ohm (typ) of channel-to-channel matching. Moreover, the product comes in 16-tssop (0.173", 4.40mm width). Has a 90ns (typ), 70ns (typ) maximum switch time. The maximum current leakage of the product included 100na. A 180mhz of bandwidth. In addition, it is reach unaffected. Ratio of multiplexer/demultiplexer circuit 2:1. It is shipped in tape & reel (tr) package . Features 12.7pf channel capacitance. Its typical moisture sensitivity level is 3 (168 hours). Single voltage supply of 2.5v ~ 5.5v. It has a long 12 weeks standard lead time. Features switch circuit of spdt. It integrates 3 circuits. The product is available in surface mount configuration. A -110db @ 1mhz of crosstalk. It has a maximum on-state resistance of 65ohm. 16-tssop is the supplier device package value. It has 6pc charge injection parameters. The product is designated with the ear99 code number.
