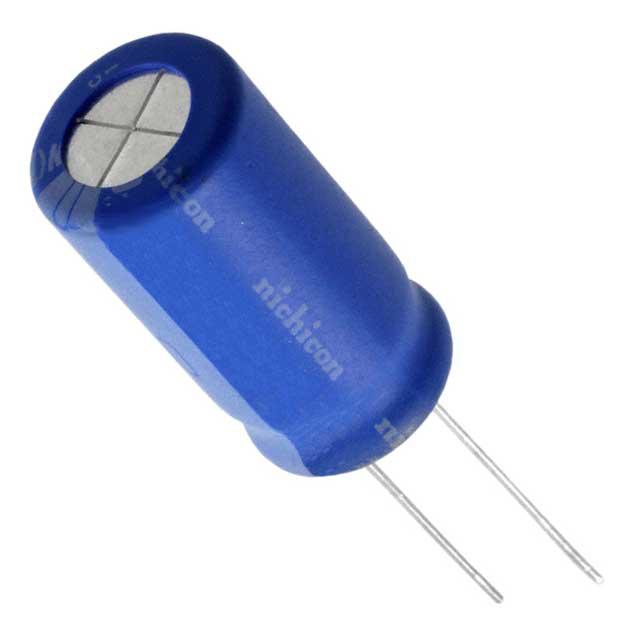

Nichicon UBW1E102MHD

UBW1E102MHD Nichicon
UBW1E102MHD
Nichicon

Product Information

Diameter:
12.5mm
Ripple Current:
1.75A
Mounting Type:
Through Hole
Dimensions:
12.5 (Dia.) x 25mm
Lead Diameter:
0.6mm
Tolerance Plus:
+20%
Series:
BW
Minimum Operating Temperature:
-55°C
Height:
25mm
Capacitance:
1000 µF
Tolerance Minus:
-20%
Construction:
Radial
Voltage:
25 V dc
Leakage Current:
4 μA
Lifetime:
3000h
Lead Pitch:
5mm
Maximum Operating Temperature:
+135°C
Tolerance:
±20%
Terminal Type:
Through Hole
Technology:
Electrolytic
Ratings:
AEC-Q200
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
1000 µF
Operating Temperature:
-55°C ~ 135°C
Package / Case:
Radial, Can
Tolerance:
±20%
Voltage - Rated:
25 V
Height - Seated (Max):
1.063" (27.00mm)
Ripple Current @ High Frequency:
1.75 A @ 100 kHz
REACH Status:
REACH Affected
Ripple Current @ Low Frequency:
1.173 A @ 120 Hz
edacadModel:
UBW1E102MHD Models
Applications:
Automotive
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/2597490
Impedance:
33 mOhms
Size / Dimension:
0.492" Dia (12.50mm)
standardLeadTime:
24 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
UBW
Packaging:
Bulk
Lifetime @ Temp.:
3000 Hrs @ 135°C
Lead Spacing:
0.197" (5.00mm)
ECCN:
EAR99
Checking for live stock

This is manufactured by Nichicon. The manufacturer part number is UBW1E102MHD. Its diameter is 12.5mm. Furthermore, 1.75a is the ripple current. The product is available in through hole configuration. The given dimensions of the product include 12.5 (dia.) x 25mm. Furthermore, the lead has 0.6mm diameter. It features a given value of +20% tolerance plus. The product bw, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. In addition, the height is 25mm. It provides a 1000 µf of capacitance value. While it has tolerance minus of -20%. The product has been well-designed with radial construction. It carries a 25 v dc of voltage. It harbors 4 μa of leakage current. It provides a long-lasting service for a period of 3000h. The lead features 5mm pitch. It has a maximum operating temperature of +135°c. It features ±20% of tolerance value. The terminal is a through hole type. This product use electrolytic technology. It is rated with aec-q200. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. The product features a [Ploarization] polarity. The product has -55°c ~ 135°c operating temperature range. Moreover, the product comes in radial, can. It also exhibits voltage rating of 25 v. It has the maximum seated height of 1.063" (27.00mm). Additionally, it carries a ripple current and high frequency of 1.75 a @ 100 khz. In addition, it is reach affected. Its ripple current at low frequency is 1.173 a @ 120 hz. The product is widely employed in automotive. It has an impedance value of 33 mohms. The product's diameters include 0.492" dia (12.50mm). It has a long 24 weeks standard lead time. Its typical moisture sensitivity level is not applicable. The product ubw, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. This product offers longer life span for 3000 hrs @ 135°c. It is assigned with 0.197" (5.00mm) of lead spacing. The product is designated with the ear99 code number.

pdf icon
BW Series_EN(Technical Reference)
pdf icon
UBW Series(Datasheets)

Reviews

  • Be the first to review.
Don’t hesitate to ask questions for better clarification.

Enrgtech offers the world's largest selection of electrical and electronic components in stock and available for Aluminum Electrolytic Capacitors, including Nichicon UBW1E102MHD, with immediate shipment. We are committed to providing you Nichicon UBW1E102MHD from leading manufacturers Nichicon trusted worldwide with full access to our products and services through our online eCommerce platform. Aluminum Electrolytic Capacitors consisting of Nichicon UBW1E102MHD are made from two sheets of aluminum foil and a piece of electrolyte-soaked paper. The Nichicon UBW1E102MHD' anode aluminum foil is anodized on one side to generate a weak layer of oxide, and the cathode aluminum foil is non-anodized; the anode and cathode are separated by electrolyte-soaked paper. The Nichicon UBW1E102MHD from Aluminum Electrolytic Capacitors is found in many applications such as computer motherboards and power supplies and is ideal when large capacitance is required, and current leakage isn't a significant factor.

Our expandable distribution space allows shipping order(s) Nichicon UBW1E102MHD or other products on the same day they are placed in the UK, while for international buyers, the shipping takes typically 2/3 days with excellent offers. We provide our services 24-hours a day and find suitable recommendations about your needed Nichicon UBW1E102MHD or track the details of the order(s) by tracking the required product number on ET13488700. Please feel free to share your thoughts regarding Nichicon UBW1E102MHD by sending an email to sales@enrgtech.co.uk or contact us at +44 (0) 3303 800 157.
