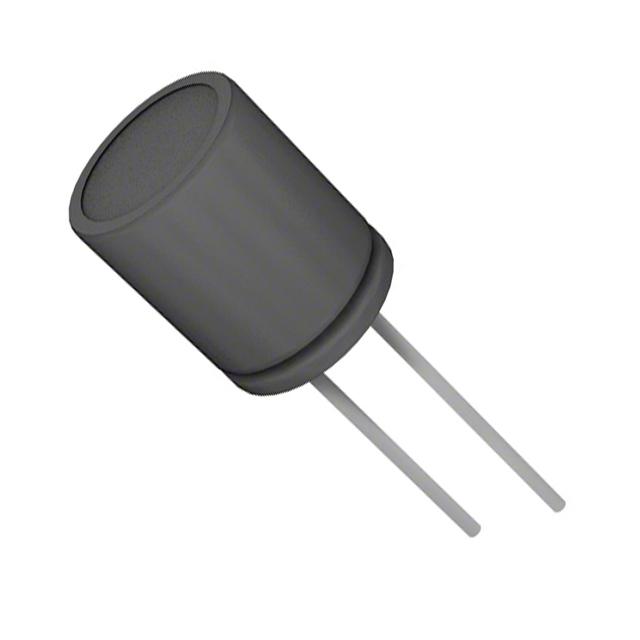

Rubycon 25YXJ470M10X12.5
Product Information
Diameter:
10mm
Ripple Current:
865mA
Dimensions:
10 (Dia.) x 12.5mm
Mounting Type:
Through Hole
Series:
YXJ
Height:
12.5mm
Capacitance:
470µF
Voltage:
25V dc
Leakage Current:
0.01 CV or 3 μA
Lifetime:
10000h
Lead Pitch:
5mm
Maximum Operating Temperature:
+105°C
Tolerance:
±20%
Minimum Operating Temperature:
-40°C
Technology:
Electrolytic
Ratings:
-
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
470 µF
Operating Temperature:
-40°C ~ 105°C
Package / Case:
Radial, Can
Tolerance:
±20%
Voltage - Rated:
25 V
Height - Seated (Max):
0.551" (14.00mm)
Ripple Current @ High Frequency:
865 mA @ 100 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
648.75 mA @ 120 Hz
edacadModel:
25YXJ470M10X12.5 Models
Applications:
General Purpose
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/3563596
Impedance:
80 mOhms
Package:
Bulk
Size / Dimension:
0.394" Dia (10.00mm)
standardLeadTime:
25 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
YXJ
Lifetime @ Temp.:
10000 Hrs @ 105°C
Lead Spacing:
0.197" (5.00mm)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 25YXJ470M10X12.5 on website for other similar products.
We accept all major payment methods for all products including ET11406506. Please check your shopping cart at the time of order.
You can order Rubycon brand products with 25YXJ470M10X12.5 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminum Electrolytic Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Rubycon 25YXJ470M10X12.5. You can also check on our website or by contacting our customer support team for further order details on Rubycon 25YXJ470M10X12.5.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11406506 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Rubycon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11406506.
Yes. We ship 25YXJ470M10X12.5 Internationally to many countries around the world.
This is manufactured by Rubycon. The manufacturer part number is 25YXJ470M10X12.5. Its diameter is 10mm. Furthermore, 865ma is the ripple current. The given dimensions of the product include 10 (dia.) x 12.5mm. The product is available in through hole configuration. The product yxj, is a highly preferred choice for users. In addition, the height is 12.5mm. It provides a 470µf of capacitance value. It carries a 25v dc of voltage. It harbors 0.01 cv or 3 μa of leakage current. It provides a long-lasting service for a period of 10000h. The lead features 5mm pitch. It has a maximum operating temperature of +105°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. This product use electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 470 µf of capacitance value. The product has -40°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can. It also exhibits voltage rating of 25 v. It has the maximum seated height of 0.551" (14.00mm). Additionally, it carries a ripple current and high frequency of 865 ma @ 100 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 648.75 ma @ 120 hz. The product is widely employed in general purpose. It has an impedance value of 80 mohms. It is shipped in bulk package . The product's diameters include 0.394" dia (10.00mm). It has a long 25 weeks standard lead time. Its typical moisture sensitivity level is not applicable. This product offers longer life span for 10000 hrs @ 105°c. It is assigned with 0.197" (5.00mm) of lead spacing. The product is designated with the ear99 code number.
