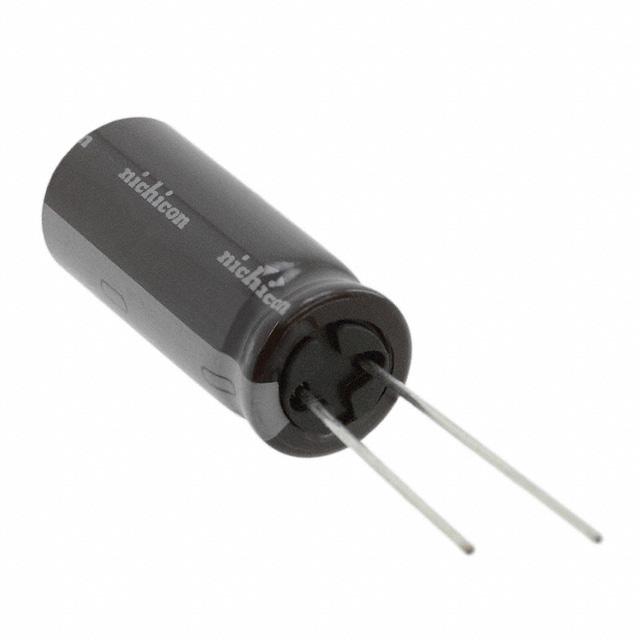

Nichicon UPA1A472MHD

UPA1A472MHD Nichicon
UPA1A472MHD
Nichicon

Product Information

Diameter:
12.5mm
Ripple Current:
2.72A
Dimensions:
12.5 (Dia.) x 31.5mm
Mounting Type:
Through Hole
Series:
PA
Height:
31.5mm
Capacitance:
4700µF
Voltage:
10V dc
Leakage Current:
4 μA
Lifetime:
5000h
Lead Pitch:
5mm
Maximum Operating Temperature:
+105°C
Tolerance:
±20%
Minimum Operating Temperature:
-55°C
Technology:
Electrolytic
Ratings:
-
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
4700 µF
Operating Temperature:
-55°C ~ 105°C
Package / Case:
Radial, Can
Tolerance:
±20%
Voltage - Rated:
10 V
Height - Seated (Max):
1.319" (33.50mm)
Ripple Current @ High Frequency:
2.72 A @ 100 kHz
REACH Status:
REACH Affected
Ripple Current @ Low Frequency:
2.312 A @ 120 Hz
edacadModel:
UPA1A472MHD Models
Applications:
General Purpose
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/3130432
Impedance:
18 mOhms
Package:
Bulk
Size / Dimension:
0.492" Dia (12.50mm)
standardLeadTime:
34 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
UPA
Lifetime @ Temp.:
5000 Hrs @ 105°C
Lead Spacing:
0.197" (5.00mm)
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Nichicon. The manufacturer part number is UPA1A472MHD. Its diameter is 12.5mm. Furthermore, 2.72a is the ripple current. The given dimensions of the product include 12.5 (dia.) x 31.5mm. The product is available in through hole configuration. The product pa, is a highly preferred choice for users. In addition, the height is 31.5mm. It provides a 4700µf of capacitance value. It carries a 10v dc of voltage. It harbors 4 μa of leakage current. It provides a long-lasting service for a period of 5000h. The lead features 5mm pitch. It has a maximum operating temperature of +105°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. This product use electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 4700 µf of capacitance value. The product has -55°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can. It also exhibits voltage rating of 10 v. It has the maximum seated height of 1.319" (33.50mm). Additionally, it carries a ripple current and high frequency of 2.72 a @ 100 khz. In addition, it is reach affected. Its ripple current at low frequency is 2.312 a @ 120 hz. The product is widely employed in general purpose. It has an impedance value of 18 mohms. It is shipped in bulk package . The product's diameters include 0.492" dia (12.50mm). It has a long 34 weeks standard lead time. Its typical moisture sensitivity level is not applicable. The product upa, is a highly preferred choice for users. This product offers longer life span for 5000 hrs @ 105°c. It is assigned with 0.197" (5.00mm) of lead spacing. The product is designated with the ear99 code number.

pdf icon
PA Series_EN(Technical Reference)
pdf icon
UPA Series(Datasheets)
pdf icon
Miniature Type Taping Spec(Datasheets)
