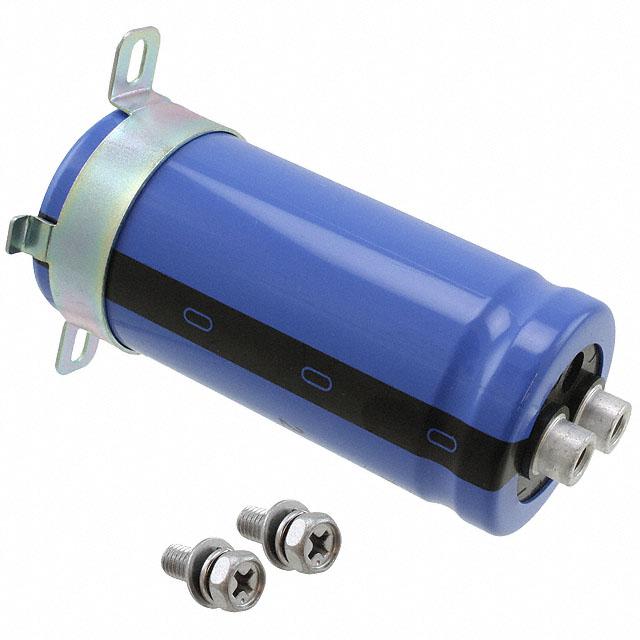

Nichicon LNR1V333MSE
Product Information
Diameter:
35mm
Ripple Current:
6.2Arms
Dimensions:
35 x 80mm
Mounting Type:
Screw Mount
Series:
NR
Height:
80mm
Capacitance:
33000µF
Voltage:
35V dc
Leakage Current:
3.22 mA
Lifetime:
5000h
Lead Pitch:
12.7mm
Maximum Operating Temperature:
+85°C
Tolerance:
±20%
Minimum Operating Temperature:
-40°C
Technology:
Electrolytic
Ratings:
-
HTSUS:
8532.22.0040
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
33000 µF
Operating Temperature:
-40°C ~ 85°C
Package / Case:
Radial, Can - Screw Terminals
Tolerance:
±20%
Voltage - Rated:
35 V
Height - Seated (Max):
3.268" (83.00mm)
Ripple Current @ High Frequency:
7.13 A @ 10 kHz
REACH Status:
REACH Affected
Ripple Current @ Low Frequency:
6.2 A @ 120 Hz
Applications:
General Purpose
Surface Mount Land Size:
-
Package:
Bulk
Size / Dimension:
1.378" Dia (35.00mm)
standardLeadTime:
31 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Chassis Mount
Series:
LNR
Lifetime @ Temp.:
5000 Hrs @ 85°C
Lead Spacing:
0.500" (12.70mm)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search LNR1V333MSE on website for other similar products.
We accept all major payment methods for all products including ET10002170. Please check your shopping cart at the time of order.
You can order Nichicon brand products with LNR1V333MSE directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminum Electrolytic Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nichicon LNR1V333MSE. You can also check on our website or by contacting our customer support team for further order details on Nichicon LNR1V333MSE.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10002170 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nichicon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10002170.
Yes. We ship LNR1V333MSE Internationally to many countries around the world.
This is manufactured by Nichicon. The manufacturer part number is LNR1V333MSE. Its diameter is 35mm. Furthermore, 6.2arms is the ripple current. The given dimensions of the product include 35 x 80mm. The product is available in screw mount configuration. The product nr, is a highly preferred choice for users. In addition, the height is 80mm. It provides a 33000µf of capacitance value. It carries a 35v dc of voltage. It harbors 3.22 ma of leakage current. It provides a long-lasting service for a period of 5000h. The lead features 12.7mm pitch. It has a maximum operating temperature of +85°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. This product use electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0040. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 33000 µf of capacitance value. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in radial, can - screw terminals. It also exhibits voltage rating of 35 v. It has the maximum seated height of 3.268" (83.00mm). Additionally, it carries a ripple current and high frequency of 7.13 a @ 10 khz. In addition, it is reach affected. Its ripple current at low frequency is 6.2 a @ 120 hz. The product is widely employed in general purpose. It is shipped in bulk package . The product's diameters include 1.378" dia (35.00mm). It has a long 31 weeks standard lead time. Its typical moisture sensitivity level is not applicable. The product is available in chassis mount configuration. The product lnr, is a highly preferred choice for users. This product offers longer life span for 5000 hrs @ 85°c. It is assigned with 0.500" (12.70mm) of lead spacing. The product is designated with the ear99 code number.
