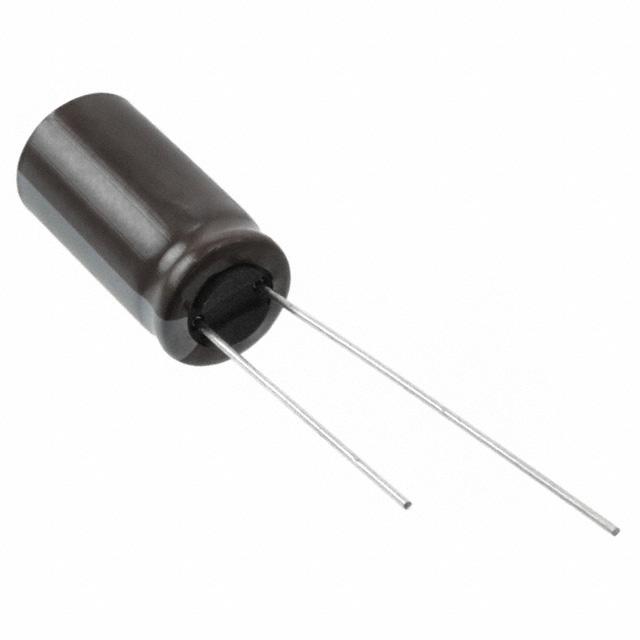

Nippon Chemi-Con 1000μF Electrolytic Capacitor 35V dc, Through Hole - ESRG350ELL102ML15S
Product Information
Diameter:
16.5mm
Ripple Current:
1010mArms
Polarised:
Polar
Dimensions:
16.5 (Dia.) x 16.5mm
Mounting Type:
Through Hole
Series:
SRG
Dissipation Factor:
0.14%
Height:
16.5mm
Capacitance:
1000µF
Voltage:
35V dc
Leakage Current:
3 μA
Lifetime:
2000h
Lead Pitch:
7.5mm
Maximum Operating Temperature:
+85°C
Tolerance:
±20%
Minimum Operating Temperature:
-40°C
Technology:
Electrolytic
Ratings:
-
HTSUS:
8532.22.0020
RoHS Status:
RoHS Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
1000 µF
Operating Temperature:
-40°C ~ 85°C
Package / Case:
Radial, Can
Tolerance:
±20%
Voltage - Rated:
35 V
Height - Seated (Max):
0.650" (16.50mm)
Ripple Current @ High Frequency:
1.515 A @ 100 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
1.01 A @ 120 Hz
Applications:
General Purpose
Surface Mount Land Size:
-
Package:
Bulk
Size / Dimension:
0.630" Dia (16.00mm)
standardLeadTime:
28 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Through Hole
Series:
SRG
Lifetime @ Temp.:
2000 Hrs @ 85°C
Lead Spacing:
0.295" (7.50mm)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search ESRG350ELL102ML15S on website for other similar products.
We accept all major payment methods for all products including ET24730504. Please check your shopping cart at the time of order.
You can order CHEMI-CON brand products with ESRG350ELL102ML15S directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminium Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nippon Chemi-Con 1000μF Electrolytic Capacitor 35V dc, Through Hole - ESRG350ELL102ML15S. You can also check on our website or by contacting our customer support team for further order details on Nippon Chemi-Con 1000μF Electrolytic Capacitor 35V dc, Through Hole - ESRG350ELL102ML15S.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET24730504 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "CHEMI-CON" products on our website by using Enrgtech's Unique Manufacturing Part Number ET24730504.
Yes. We ship ESRG350ELL102ML15S Internationally to many countries around the world.
This is Nippon Chemi-Con 1000μF Electrolytic Capacitor 35V dc Through Hole - manufactured by CHEMI-CON. The manufacturer part number is ESRG350ELL102ML15S. Its diameter is 16.5mm. Furthermore, 1010marms is the ripple current. Furthermore, it is polar polarised. The given dimensions of the product include 16.5 (dia.) x 16.5mm. The product is available in through hole configuration. The product srg, is a highly preferred choice for users. It provides a dissipation factor of 0.14%. In addition, the height is 16.5mm. It provides a 1000µf of capacitance value. It carries a 35v dc of voltage. It harbors 3 μa of leakage current. It provides a long-lasting service for a period of 2000h. The lead features 7.5mm pitch. It has a maximum operating temperature of +85°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. This product use electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs compliant. The product features a [Ploarization] polarity. It provides a 1000 µf of capacitance value. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in radial, can. It also exhibits voltage rating of 35 v. It has the maximum seated height of 0.650" (16.50mm). Additionally, it carries a ripple current and high frequency of 1.515 a @ 100 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 1.01 a @ 120 hz. The product is widely employed in general purpose. It is shipped in bulk package . The product's diameters include 0.630" dia (16.00mm). It has a long 28 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). This product offers longer life span for 2000 hrs @ 85°c. It is assigned with 0.295" (7.50mm) of lead spacing. The product is designated with the ear99 code number.
