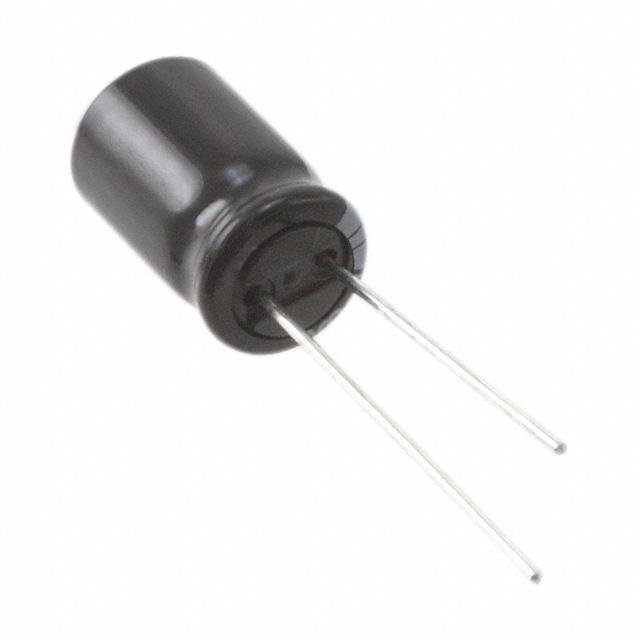

Rubycon 6.3ZLH820M8X11.5

6-3ZLH820M8X11-5 Rubycon 6.3ZLH820M8X11.5
6.3ZLH820M8X11.5
6.3ZLH820M8X11.5
Rubycon

Product Information

Diameter:
8mm
Ripple Current:
945mA
Dimensions:
8 (Dia.) x 11.5mm
Mounting Type:
Radial, Through Hole
Series:
ZLH
Height:
11.5mm
Capacitance:
820µF
Voltage:
6.3V dc
Leakage Current:
3 μA
Lifetime:
8000h
Lead Pitch:
3.5mm
Maximum Operating Temperature:
+105°C
Tolerance:
±20%
Minimum Operating Temperature:
-40°C
Technology:
Aluminium Electrolytic
Ratings:
-
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
820 µF
Operating Temperature:
-40°C ~ 105°C
Package / Case:
Radial, Can
Tolerance:
±20%
Voltage - Rated:
6.3 V
Height - Seated (Max):
0.512" (13.00mm)
Ripple Current @ High Frequency:
945 mA @ 100 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
567 mA @ 120 Hz
edacadModel:
6.3ZLH820M8X11.5 Models
Applications:
General Purpose
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/3134415
Impedance:
56 mOhms
Size / Dimension:
0.315" Dia (8.00mm)
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
ZLH
Packaging:
Bulk
Lifetime @ Temp.:
8000 Hrs @ 105°C
Lead Spacing:
0.138" (3.50mm)
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Rubycon. The manufacturer part number is 6.3ZLH820M8X11.5. Its diameter is 8mm. Furthermore, 945ma is the ripple current. The given dimensions of the product include 8 (dia.) x 11.5mm. The product is available in radial, through hole configuration. The product zlh, is a highly preferred choice for users. In addition, the height is 11.5mm. It provides a 820µf of capacitance value. It carries a 6.3v dc of voltage. It harbors 3 μa of leakage current. It provides a long-lasting service for a period of 8000h. The lead features 3.5mm pitch. It has a maximum operating temperature of +105°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. This product use aluminium electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 820 µf of capacitance value. The product has -40°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can. It also exhibits voltage rating of 6.3 v. It has the maximum seated height of 0.512" (13.00mm). Additionally, it carries a ripple current and high frequency of 945 ma @ 100 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 567 ma @ 120 hz. The product is widely employed in general purpose. It has an impedance value of 56 mohms. The product's diameters include 0.315" dia (8.00mm). Its typical moisture sensitivity level is not applicable. The product is available in through hole configuration. In addition, bulk is the available packaging type of the product. This product offers longer life span for 8000 hrs @ 105°c. It is assigned with 0.138" (3.50mm) of lead spacing. The product is designated with the ear99 code number.

pdf icon
ZLH SERIES MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS Data Sheet(Technical Reference)
pdf icon
Lead Forming Codes(Datasheets)
pdf icon
ZLH Series Datasheet(Datasheets)
