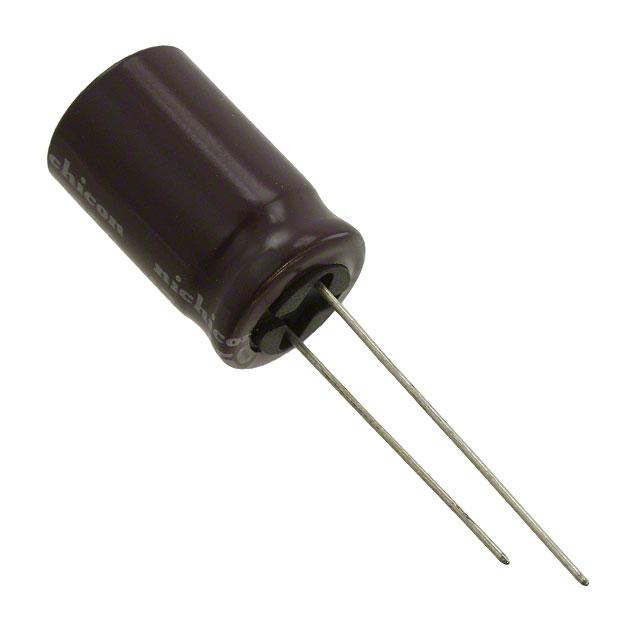

Nichicon UCS2E470MHD
Product Information
Diameter:
12.5mm
Ripple Current:
980mA
Dimensions:
12.5 (Dia.) x 20mm
Mounting Type:
Radial, Through Hole
Series:
CS
Height:
20mm
Capacitance:
47µF
Voltage:
250V dc
Minimum Operating Temperature:
-40°C
Lifetime:
10000h
Lead Pitch:
5mm
Maximum Operating Temperature:
+105°C
Tolerance:
±20%
Technology:
Aluminium Electrolytic
Ratings:
-
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
47 µF
Operating Temperature:
-40°C ~ 105°C
Package / Case:
Radial, Can
Tolerance:
±20%
Voltage - Rated:
250 V
Height - Seated (Max):
0.846" (21.50mm)
Ripple Current @ High Frequency:
980 mA @ 100 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
490 mA @ 120 Hz
edacadModel:
UCS2E470MHD Models
Applications:
General Purpose
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/3438507
Package:
Bulk
Size / Dimension:
0.492" Dia (12.50mm)
standardLeadTime:
23 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
UCS
Lifetime @ Temp.:
10000 Hrs @ 105°C
Lead Spacing:
0.197" (5.00mm)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search UCS2E470MHD on website for other similar products.
We accept all major payment methods for all products including ET11875927. Please check your shopping cart at the time of order.
You can order Nichicon brand products with UCS2E470MHD directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminium Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nichicon UCS2E470MHD. You can also check on our website or by contacting our customer support team for further order details on Nichicon UCS2E470MHD.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11875927 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nichicon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11875927.
Yes. We ship UCS2E470MHD Internationally to many countries around the world.
This is manufactured by Nichicon. The manufacturer part number is UCS2E470MHD. Its diameter is 12.5mm. Furthermore, 980ma is the ripple current. The given dimensions of the product include 12.5 (dia.) x 20mm. The product is available in radial, through hole configuration. The product cs, is a highly preferred choice for users. In addition, the height is 20mm. It provides a 47µf of capacitance value. It carries a 250v dc of voltage. Whereas, the minimum operating temperature of the product is -40°c. It provides a long-lasting service for a period of 10000h. The lead features 5mm pitch. It has a maximum operating temperature of +105°c. It features ±20% of tolerance value. This product use aluminium electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 47 µf of capacitance value. The product has -40°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can. It also exhibits voltage rating of 250 v. It has the maximum seated height of 0.846" (21.50mm). Additionally, it carries a ripple current and high frequency of 980 ma @ 100 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 490 ma @ 120 hz. The product is widely employed in general purpose. It is shipped in bulk package . The product's diameters include 0.492" dia (12.50mm). It has a long 23 weeks standard lead time. Its typical moisture sensitivity level is not applicable. The product is available in through hole configuration. The product ucs, is a highly preferred choice for users. This product offers longer life span for 10000 hrs @ 105°c. It is assigned with 0.197" (5.00mm) of lead spacing. The product is designated with the ear99 code number.
